Solar Cables Designed for Outdoor Photovoltaic Systems

Contact Now

Min. Order:

Contact Now

Product Description

Product Attributes
Packaging & Delivery

< >

Overview

Product Attributes

Model No.: LOW VOLTAGE

Brand: Dadi Energy

Place Of Origin: China

Conductor Material: Copper, Aluminum, Copper Clad Aluminum, Copper Clad Steel, Aluminum Clad Steel, Ccam

Insulation Materials: Pvc, Xlpe, Rubber, Fiberglass, Pe, Fep, Pfa, Etfe, Ptfe

Jacket: Rubber, Pe, Pvc, Fep, Pfa, Ptfe, Etfe

Packaging & Delivery

Description

We can offer you customized service of high and low voltage cross-linked Cables, long-life wires and cables.Our wires and cables have been certified in 28 European countries and exported to over 100countries and regions, comply with CCC and ISO9001 certificates.

We have remained true to our core principles of customer service, on time delivery,uncompromised quality and exceptional value at competitive prices.

Key attributes

Insulation Material	XLPE(XLPO),XLPE	Application	Solar PV system
Conductor Material	Copper/Tinned Copper	Jacket	XLPO/XLPE/PE/PVC
Place of Origin	Hebei,China	Brand Name	Dadi or OEM
Model Number	Solar Cable	Type	LOW VOLTAGE

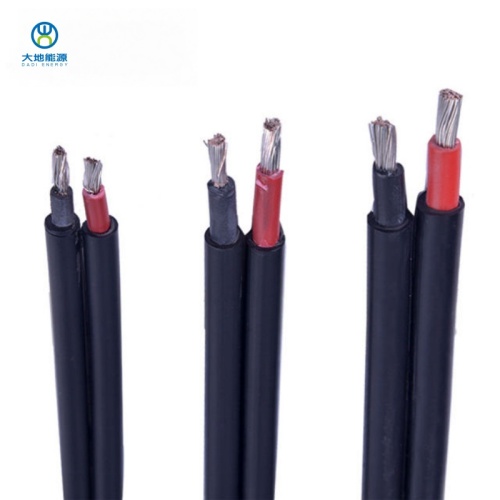

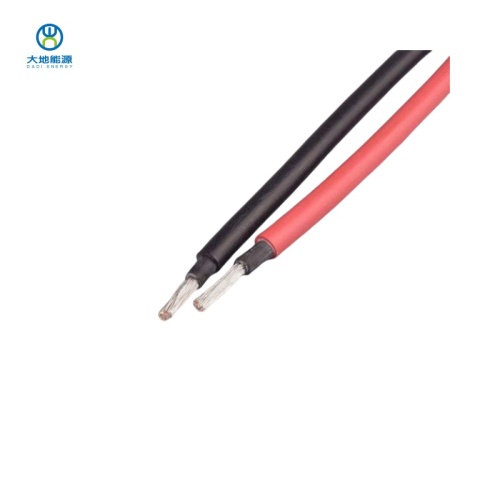

Product name	xlpo insulation pv solar cable	Color	Red/Black/White

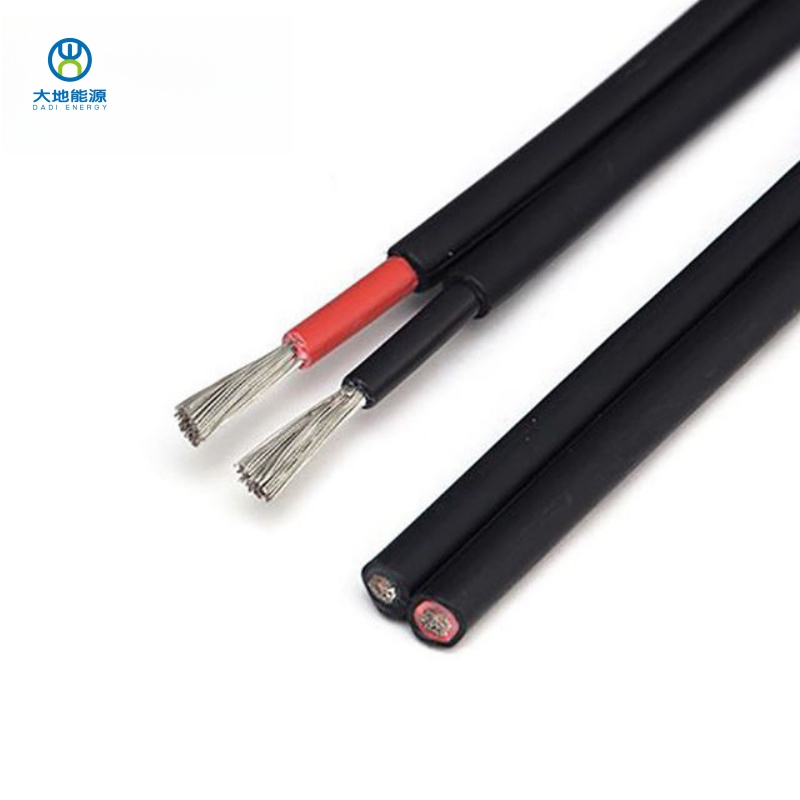

Rated voltage	600/1000V	Core	1 Core/2 Cores

Packing and delivery

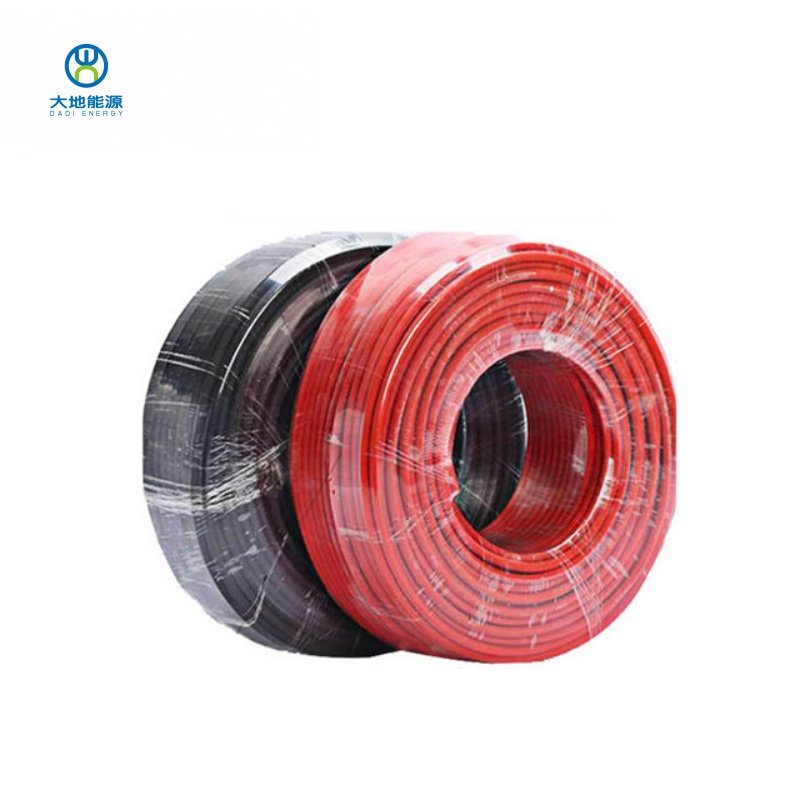

Packaging Details	1.Packing Lengths:100m/roll,200m/roll,…	Port of dispatch	Qingdao
Selling Units	Single item	Single package size	10X10X10 cm
Single gross weight	1.000 KG	Packaging examples

Product Fatures:

PV solar cable and wire is rated 600V,1000V,2000V,is suitable for ac and dc systems.It is rated 90,105,125 or 150°C dry and 90°C wet.

Single conductor, insulated and non-integrally jacketed, sunlight resistant, photovoltaic wire rated for 90°C wet or dry, 600V for interconnection wiring of grounded and ungrounded photovoltaic power systems as described in Section 630.31 (And other applicable parts of the National Electric Code (NEC), NFPA 70). Ratings only apply to certain gage sizes.

Electrical

1. The dc resistance: the finished cable at 20 ºC conductive wire core dc resistance is not greater than 5.09 Ω/km

2. The insulation resistance: the finished insulation resistance of cable at 20 ºC should not less than 1014 Ω. Cm, finished cable insulation resistance at 90 ºC is not less than 1011 Ω. Cm

3. The sheath surface resistance: resistance of the finished cable sheath surface should be not less than 109 Ω.

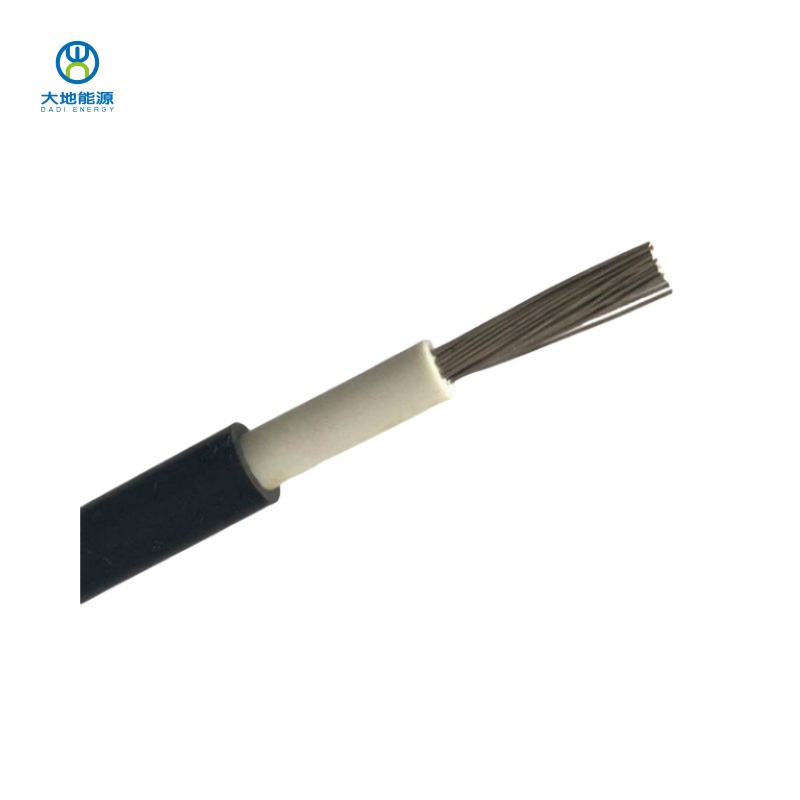

Cable structure

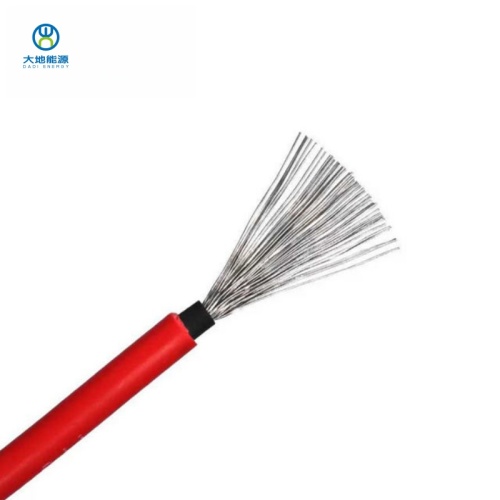

Conductor: tinned copper wire 2.5, 4, 6, 10, 16 mm² 2 PV1 - F

18, 16 and 14, 12, 10, 8, 6, 4, 2 mm² PV wire

Insulation: > 0.5mm thick with low smoke and halogen material, and meet the specified limit of the customer.

Sheath: low smoke and halogen free material thickness > 0.5mm.

Product Advantage:

1.Electron-beam cross-linked compounds

2.Excellent resistance to U.V,oil,greases,oxygen and ozone

3.Excellent resistance to abrasion

4.Halogen free, flame retardant,low toxicity

5.Excellent flexibility and stripping performance

6.Very long service life > 25 years at 90°C

FAQ:

Q1:Who you are? What are your company's Main Products?
This is Qingdao Dadi co., ltd., located in Qingdao, China, specializing in manufacturing and selling full series of wires and cables, such as: rubber sheathed flexible cable, sheathed cable, control cable, power cable, aerial insulated cable, aluminum stranded wires and steel core aluminum stranded wires, PVC insulated non-sheathed (soft) wire and cable, special cable.

Q2: How can I get the Quotation of the products?
Pls send your demand or specification to us or just E-mail our trade Manager, We'll reply to you within 2 hours in the Working days.

Q3: What does your company do regarding Quality Control?
Firstly, All raw materials were selected are the highest quality level. Secondly,Professional and skillful workers care for every detail in handling the production. Thirdly, Quality Control Department is specially responsible for quality checking in each process and final check before shipping to our customers.

Q4: I didn't find my needed model in this page. Do you provide OEM Project Service?
Surely , our factory could manufacturing more than10000 models, OEM & ODM order is warmly welcome and we can you put your brand name, (logo) on these products. What's more, our R&D team will give you professional suggestions.

Q5: How could I get the Sample?
We are honored to offer you samples if we have it in stock, usually it is not free , but we will return it to your on first time mass order .but you need to pay the freight. If you have a courier account or forwarder in China, we can send it your courier to collect samples.

Q6: How long is the Delivery Time?
For Sample: 1-3 working days ; For small orders: 3-10 working days; For mass orders: 10-18 working days. It is better to communicate with us if you are interested to place an order. It depends on your order quantity.

Q7: What are your payment terms?
Our payment term is usually T/T 30% in advanced, the balance before picking up the goods or L/C at sight.

Q8: What is your Warranty? How about MOQ ?
All the products will have 24 months Warranty,Our company has MOQ requirement, but we also accept small quantity. We would love to grow up with every customers. Please feel free to contact us and send us your inquiry.

Product Categories : Other Photovoltaic Accessories > Cables

Home > Products > Other Photovoltaic Accessories > Cables > Solar Cables Designed for Outdoor Photovoltaic Systems

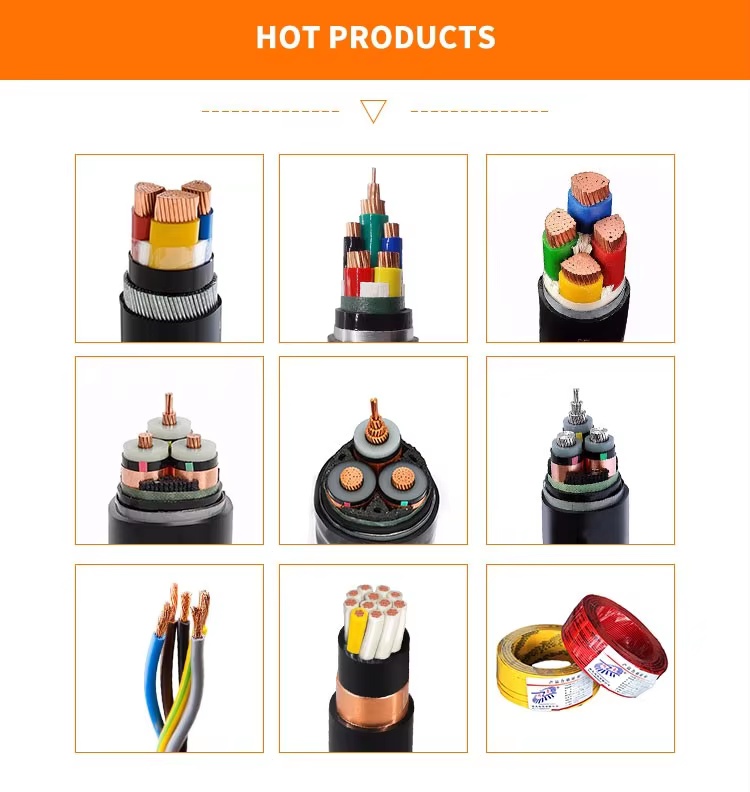

Hot Products
